Sony PMW-EX3 XDCAM HD Camcorder
Sony PMW-EX3 XDCAM HD Camcorder
Sony PMW-EX3 XDCAM HD Camcorder
Sony PMW-EX3 XDCAM HD Camcorder
Sony PMW-EX3 XDCAM HD Camcorder
Sony PMW-EX3 XDCAM HD Camcorder

Sony PMW-EX3 XDCAM HD Camcorder

$3,039.00 $4,299.99

You Save: $1,260.99 (29%)

In Stock

Ships in 1-2 Business Days

Item: 300005

Manufacture: Sony

Condition: New

Extended Warranty Coverage:

Free delivery
Need Help? Call Us: 855-425-2525

Filters & Filter Kits

Memory & Digital Media

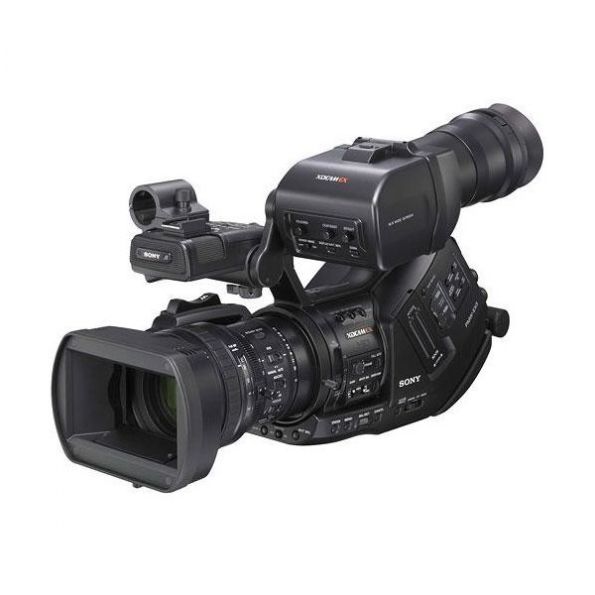

The PMW-EX3 compact camcorder with an interchangeable lens system incorporates three ½-inch type Exmor™ Full HD CMOS sensors, each with an effective pixel count of 1920 x 1080, delivering stunning-quality HD images in 1080P, 720P, and 1080i HD resolutions. A rich variety of features for creative shooting are incorporated into this camcorder such as “Slow & Quick Motion”, which is also commonly known as “over-cranking” and “under-cranking”, selectable gamma curves, slow-shutter, interval recording and Picture Profile™ feature. Additionally, the PMW-EX3 offers a convenient remote-control and multi-camera operation capability, which allows use with high-end camera systems.

Other Features


  • ATW (Auto Tracing White Balance)
  • Built-in ND filter wheel: OFF: Clear, 1: 1/8ND, 2: 1/64ND
  • Selectable gain: -3, 0, 3, 6, 9, 12, 18 dB
  • High-speed picture search: x4, x15
  • Freeze Mix function
  • Skin-tone Detail control
  • Low-key saturation
  • IR Remote Commander™ unit
Weight Approx. 4 lb 2 oz (1.9 kg) (without lens)
Approx. 7 lb 9 oz (3.6 kg)
(with lens, lens hood, eye piece, BP-U30 battery, one SxS PRO memory card)
Dimensions 9 7/8 x 8 2/8 x 15 6/8 inches (250 x 210 x 400 mm)(with lens) without projection
Power Requirements DC 12 V
Power Consumption Approx. 13.5 W (while recording, LCD viewfinder On)
Operating Temperature +32 to +104 °F (0 to +40 °C)
Storage Temperature -4 to +140 °F (-20 to +60 °C)
Continuous Operating Time Approx. 210 min. with BP-U60 battery
Approx. 100 min. with BP-U30 battery
Recording Format Video:
MPEG-2 Long GOP
HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14

Audio:
Linear PCM (2ch, 16-bit, 48-kHz)
Recording Frame Rate NTSC setting:
HQ mode: 1920 x 1080/59.94i, 29.97P, 23.98P, 1280 x 720/59.94P, 29.97P, 23.98P
SP mode: 1440 x 1080/59.94i

PAL setting:
HQ mode: 1920 x 1080/50i, 25P, 1280 x 720/50P, 25P
SP mode: 1440 x 1080/50i
Recording/Playback Time HQ mode:
Approx. 50 min. with SBP-16 (16 GB) memory card
Approx. 25 min. with SBP-8 (8 GB) memory card

SP mode:
Approx. 70 min. with SBP-16 (16 GB) memory card
Approx. 35 min. with SBP-8 (8 GB) memory card
LENS
Lens Mount 1/2-inch EX mount
Zoom Ratio Selectable 14x (optical), servo/manual
Focal Length f = 5.8 to 81.2 mm (equivalent to 31.4 to 439 mm on 35 mm lens)
Iris F1.9 to F16 and Close, servo/manual selectable
Maximum Relative Aperture 1:1.9
Focus AF/MF/Full MF selectable, 800 mm to ∞ (MACRO OFF),
50 mm to ∞ (MACRO ON, Wide), 735 to ∞ (MACRO ON, Tele)
Image Stabilizer ON/OFF selectable, shift lens
Filter Thread M77 mm, pitch 0.75 mm (on lens)
CAMERA
Pickup Device 3-chip 1/2-inch type Exmor Full HD CMOS
Effective Picture Elements 1920 (H) x 1080 (V)
Optical System F1.6 prism system
Built-in Filters ND Filter:
OFF: Clear, 1: 1/8ND, 2: 1/64ND
Sensitivity (2000 lx, 89.9% reflectance) F10 (typical) (1920 x 1080/59.94i mode)
Minimum Illumination 0.14 lx (typical) (1920 x 1080/59.94i mode, F1.9, +18 dB gain, with 64-frame accumulation)
S/N Ratio 54 dB (Y) (typical)
Horizontal Resolution 1000 TV lines or more (1920 x 1080i mode)
Shutter Speed 1/33 to 1/2000 sec.
Shutter Angle 180, 90, 45, 22.5, 11.25 degrees
Slow Shutter (SLS) 2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-, 32-, and 64-frame accumulation
Slow & Quick Motion Function 720P:
Selectable from 1 to 60 fps as recording frame rate

1080P:
Selectable from 1 to 30 fps as recording frame rate
SIGNAL INPUTS/OUTPUTS
Audio Output XLR-3-pin (female) (x 2), line/mic/mic +48 V selectable
Composite Output BNC (x1), 1.0 Vp-p, 75 Ω
S-Video Output Y: 1.0 Vp-p, 75 Ω unbalanced, sync negative
Audio Output RCA type(CH-1,CH-2),-10 dBu (reference level), 47 k Ω
Component Output Mini D (x 1) Y: 1.0 Vp-p, 75 Ω, Pb/Pr: 0.7 Vp-p, 75 Ω
SDI Output BNC (x 1), HD-SDI/SD-SDI selectable
i.LINK Input/Output IEEE1394, 4-pin (x 1), HDV stream input/output, S400
Timecode Input BNC (x1), 0.5 to 18 Vp-p, 10 Ω
Timecode Output BNC (x1), 1.0 Vp-p, 75 Ω
Genlock Input BNC (x1), 1.0 Vp-p, 75 Ω
USB Mini-B (x 1), USB 2.0 High-speed
Headphone Output Stereo mini-jack (x 1), -20.5 dBu (reference level output, 16 Ω load)
Speaker Output Monaural, 300 mW
DC Input DC jack
Battery Input 5-pin
Remote 8-pin
BUILT-IN VIEWFINDER
LCD Viewfinder/screen 3.5-inch* type color LCD monitor, approx. 921000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type
MEDIA SLOT
Type ExpressCard/34 (x 2)
Interface ExpressCard compatible

• Brand New Factory Fresh Import Model
